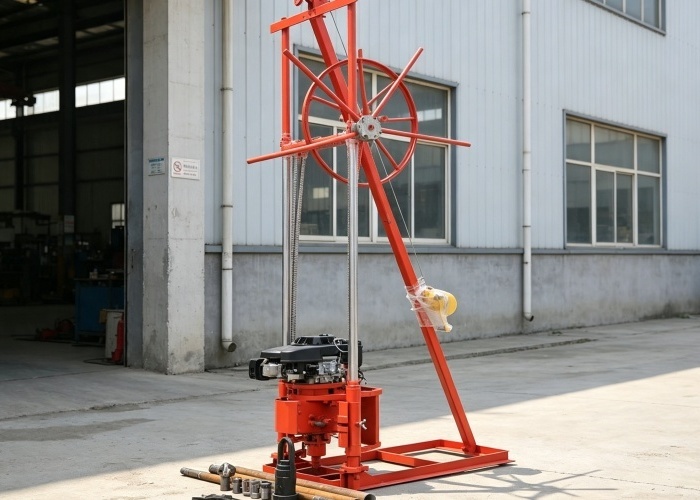

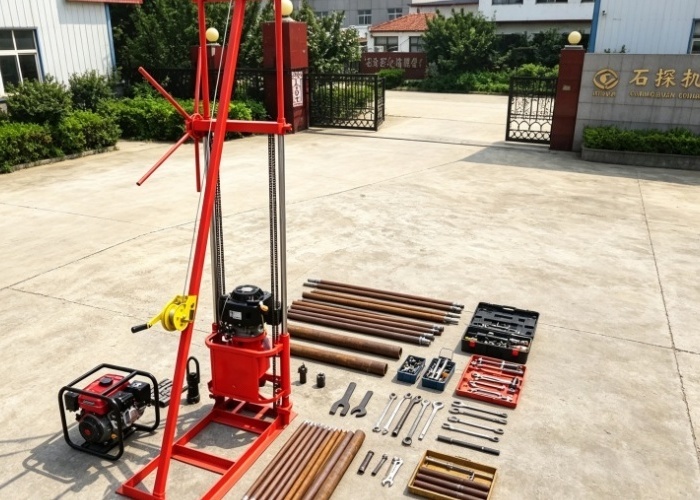

OEM 30 Meters Portable Water Well Drilling Rig
ST 30 Description
The ST 30 Meters Depth is a small portable drilling equipment primarily designed for mountainous terrain, transportation, and energy applications. This machine effectively replaces traditional manual excavation, tank probing, sampling, and similar tasks. It not only delivers higher efficiency but also minimizes vegetation damage and protects the environment.
ST 30 Specifications
| Basic Data |
Elevator |
| Drilling Depth |
30 Meters |
Lifting Capacity |
4000N |
| Open Hole Diameter |
110mm |
Drum Rotational Speed |
0.46, 1.15, 1.97 m/s |
| Drill Pipe Diameter |
33.5mm |
Drum Diameter |
90mm |
| Weight |
290kg |
Wire Rope Diameter |
8mm |
| Outsize |
1510*600*1055mm |
Wire Rope Capacity |
18m |
| Swivel Disc Box |
Oil Pump |
| Speed |
136, 338, 578 r/min |
Type |
gear oil pump |
| Maximum Torque |
350N·m |
Displacement |
14mL/r |
| Drilling Schedule |
400mm |
Rated Speed |
2500r/min |
| Maximum Pressure (Under Oil Cylinder) |
8000N |
Rated Pressure |
20MPa |
| Maximum Force (Oil Cylinder) |
10000N |
Maximum Pressure |
25MPa |
ST 30 Portable Borehole Drilling Machine Advantages
- Easy to Carry: A set of 3m standard Hengwang backpack rigs weighs only 25kg
- Flexible Operation: Easy to disassemble and install with fast coring capability
- Efficient and Durable: Special material diamond drill bit provides fast drilling speed and long service life
ST 30 Portable Borehole Drilling Machine Main Applications
A portable multi-purpose micro-engineering drilling rig suitable for:
- Industrial and civil construction
- Bridge, railway, and highway projects
- Hydropower and other industries
- Geological investigation and geophysical exploration drilling
- Advanced drilling and grouting drilling
- Embedded parts drilling and blasting holes
- Inspection holes and small household wells
Rig Features
- Compact structure, small volume, light weight with two gears for easy movement
- Stable performance with less vibration, low noise, and high reliability
- Minimal wearing parts for easy on-site maintenance
- Main host features a gearbox for diamond drilling, alloy drilling, and screw drilling
