Compact Tractor Tractor Mounted With Strong Power

Weight : 2.8T

Product Name : Tractor Self-propelled Well Drilling Machine Water Well Drilling Rig

Drilling Diameter : 150-500mm

Movement speed : 2.5Km/h

Delivery Time : 7 days after payment

Model Number : Tractor self-propelled well drilling machine

Brand Name : Shitan

Packaging Details : Wooden Box

Payment Terms : TT,Western Union

Drilling Depth : 100 Meters

Overall size : 4000*1600*2680

Price : Negotiate

Supply Ability : 1000 Sets Monthly

MOQ : 1 SET

Torque : 260 N.m

Place of Origin : Jinzhou ,Hebei Province

Power Source : Electricity,Diesel

Contact Now

Compact Tractor Tractor Mounted With Strong Power
This Tractor Tractor Mounted features a compact design with strong power output. With a movement speed of 2.5 kilometers per hour and excellent site adaptability, this equipment weighs only 2.8 tons with overall dimensions of 4000 × 1600 × 2680 millimeters. The rig offers a maximum clamping angle of 30° for secure operation and is characterized by high efficiency, easy operation, durability, and reliability—making it an ideal choice for engineering-level water well drilling operations.
Technical Specifications
Specification Value
Drilling Depth 100 Meters
Weight 2.8T
Rod Hole Diameter 60mm
Drilling Diameter 150 - 500mm
Power Source Electricity, Diesel
Movement Speed 2.5Km/h
Overall Size 4000×1600×2680
Tractor Power 36 HP
Torque 260 N.m
Electric Motor 11W
Clamping Capacity 30° MAX
Generator 30 kw
Operation & Safety Guidelines
Pre-Operation Preparation
  • Equipment Inspection: Conduct comprehensive inspection of all components, focusing on engine oil, diesel, circuit connections, and oil pipe sealing to ensure no leakage or looseness
  • Site Adaptation: Choose solid, flat work sites and avoid soft or sloping ground; clear obstacles and ensure sufficient operating space
  • Personnel Qualifications: Operators must undergo professional training and wear appropriate protective equipment
  • Power Debugging: Confirm power matching and run equipment for 5-10 minutes without load to check for stable output and abnormal noise
Operation Process
  • Parameter Compliance: Strictly follow rated parameters—drilling diameter not exceeding 500mm, depth not exceeding 150m
  • Clamping & Fixing: Ensure clamping device is secure with angle controlled within 30°; monitor for looseness during operation
  • Real-time Monitoring: Continuously monitor operating temperature, oil pressure, and circuit stability; stop immediately if abnormalities occur
  • Safety Distance: Non-operators must stay away from rotation areas and set up safety warning signs
Transportation & Movement
  • Traction Movement: Ensure firm connection and control speed within 2.5 km/h; avoid sudden acceleration and braking
  • Size Adaptation: Confirm road, bridge, and tunnel dimensions before transportation (equipment weight 2.8 tons)
  • Loading & Unloading: Use suitable lifting equipment with even force distribution; secure detachable components during transport
Maintenance & Storage
  • Daily Maintenance: Clean surface debris, check wear on drill rods and bits, replace oil and filters regularly
  • Long-term Storage: Store in dry, ventilated areas; disassemble drill rods and bits with rust-proof oil application
  • Fault Handling: Cut off power and oil before maintenance; contact professional technicians for complex issues
Product Images

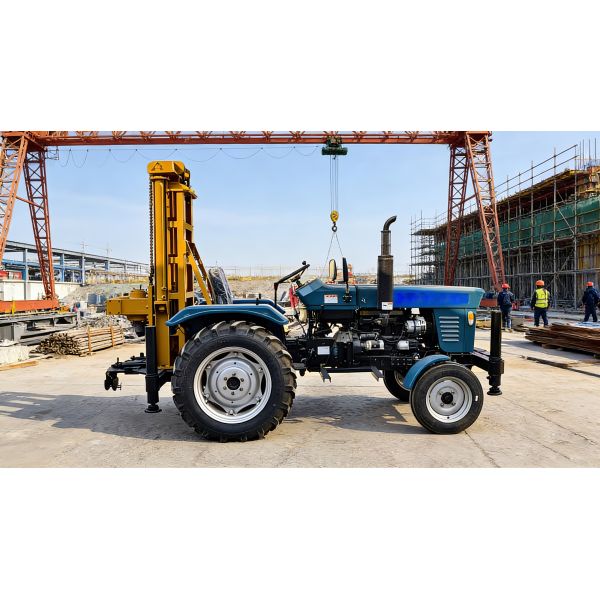

Compact Tractor Tractor Mounted With Strong Power
Compact tractor water well drilling rig operational view
Compact Tractor Tractor Mounted With Strong Power
Side view showing compact design
Compact Tractor Tractor Mounted With Strong Power
Close-up of mechanical components
Compact Tractor Tractor Mounted With Strong Power
Equipment in operation at worksite
Compact Tractor Tractor Mounted With Strong Power
Clamping mechanism and controls
