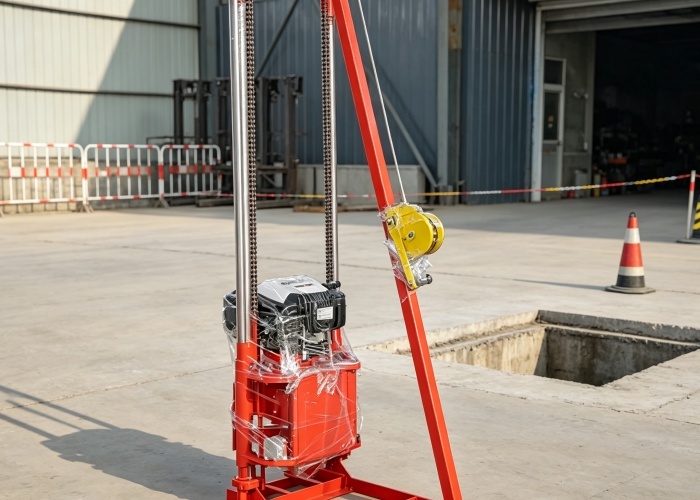

Sampling Portable Soil Drilling Rigs 10-30m Depth Personal Drilling
Product Overview
Portable sampling drilling rig is a light multi-purpose mini engineering drilling rig. Light weight and easy to move, gasoline engine as the power unit and 2-speed gearshift, suitable for field operation.
Technical Specifications
| Basic Data |
Elevator |
| Drilling depth |
35-15m |
Lifting capacity |
4000N |
| Open hole diameter |
110mm |
Drum rotational speed |
0.46-1.15-1.97m/s |
| Drill pipe diameter |
33.5mm |
Drum diameter |
90mm |
| Weight |
290kg |
Wire rope diameter |
8mm |
| Outsize |
1510×600×1055mm |
Wire rope capacity |
18m |
| Swivel Disc Box |
Oil Pump |
| Speed |
136-338-578 r/min |
Type |
CBW-F314-ALP gear oil pump |
| Maximum torque |
350N*m |
Displacement |
14mL/r |
| Drilling schedule |
400mm |
Rated speed |
2500r/min |
| The biggest pressure (under oil cylinder) |
8000N |
Rated pressure |
20MPa |
| On the biggest force (Oil cylinder) |
10000N |
The Max. pressure |
25MPa |
| Power |
Tower |
| Motor |
Diesel engine |
Type |
Single seamless steel tube |
| Type |
Y132M-4 |
R185 |
Tower height |
| Power |
7.5KW |
6.47KW |
5.6 Meter |
| Speed |
1440r/min |
2200r/min |
|
| Weight |
81KG |
95KG |
|
Key Features
- The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency, safe and reliable
- Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole
- The handle centered, convenient operation
- The drilling machine has the advantages of compact structure, small volume, light weight, convenient move, decomposition and strong, suitable for the plains or mountain areas
