ST50 Soil Testing Drilling Rig - 75mm Dia Core Samples Collection
Product Overview

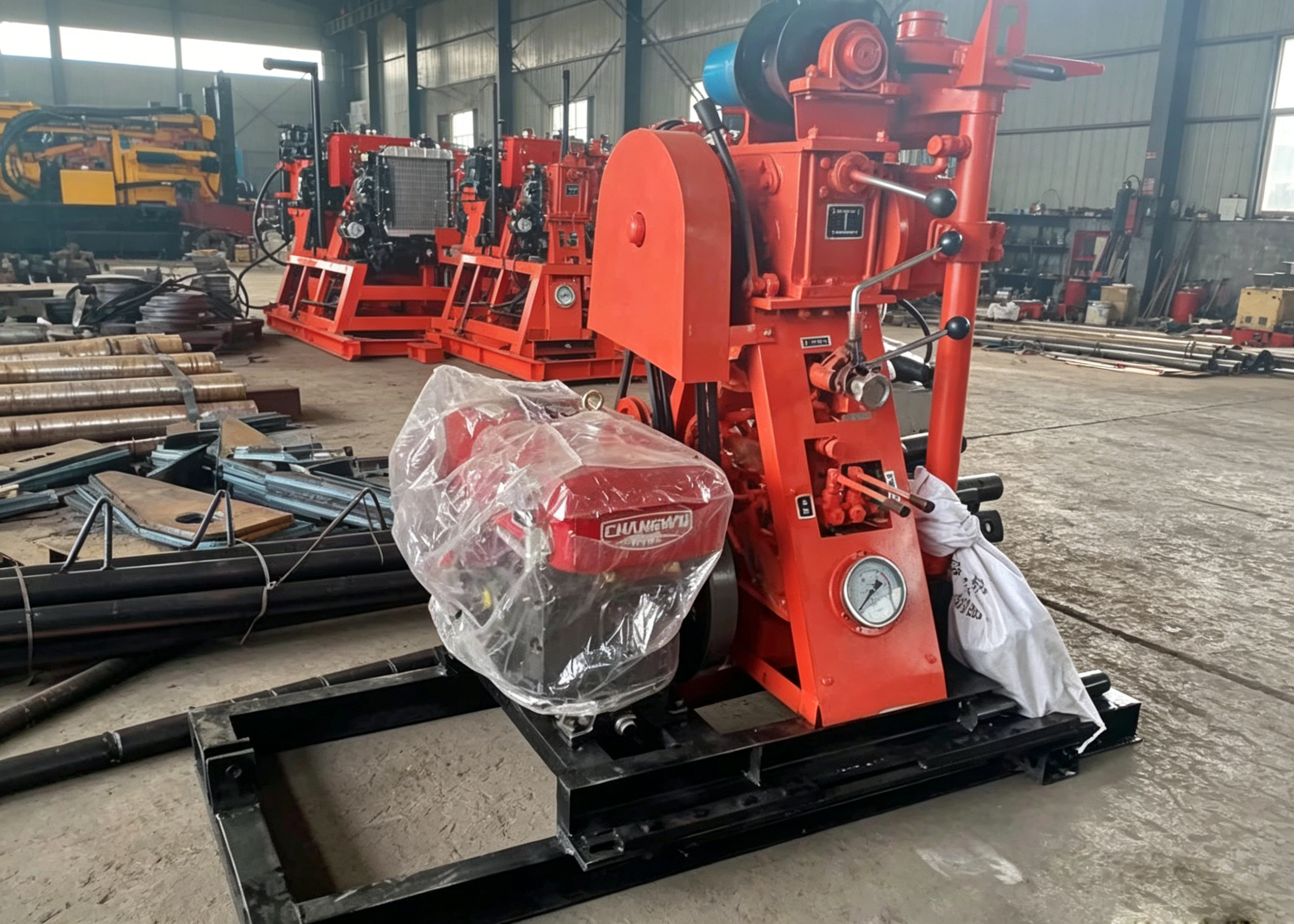

The SPT Civil Personal Core Soil Testing Drilling Rig with 50 meters capacity is engineered for drilling wells and general exploration applications. This advanced drilling rig incorporates cutting-edge technology from domestic and international sources, making it suitable for use in various complex conditions. Powered by either gasoline or diesel engines, it features hydraulic pack operations for rotary and cylinder pressure functions, ensuring reliable and efficient performance.
Technical Specifications
| Parameter |
Specification |
| Max. drilling depth |
50m |
| Max. opening diameter |
φ75-φ108mm |
| End hole diameter |
56-75mm |
| Active drill pipe |
50/1000mm |
| Drill pipe diameter |
Φ42mm |
| Drill pipe length |
1000mm |
| Power (diesel engine) |
5.8kw(8P)/2200r/min |
| Size |
1400*600*1600mm |
| Weight |
240kg |
| Spindle Speed |
285-570r/min |
| Torque |
600 N*m |
| Stroke |
1000mm |
| Lifting force |
300KG |
| Pressure |
200KG |
Key Advantages
- Double oil cylinder hydraulic feeding system for fast drilling speed and high working efficiency
- Fixed clamping mechanism and integrated main rod that eliminates the need for a drilling tower, enabling convenient operation
- 4-speed transmission system with three forward gears and a slow reverse gear for easy drill pipe and tool disassembly
- Centralized handle design for easy operation, safety, and feasibility
- Pressure gauge at the bottom of the hole to monitor pressure and track conditions within the hole
- Compact structure with small floor area requirements
- Strong decomposition ability and easy mobility, suitable for hilly, mountainous, and complex terrain applications
Exploration Applications
Drilling refers to an exploration method where a drilling rig is used to create holes in the stratum to identify and divide subsurface layers. Samples can be collected along the hole depth during the process. Drilling is the most widely used exploration method in engineering geological surveys, providing access to deep geological data.
Product Images
Front View
Side View
Operational View
Technical Diagram
Component Detail
Control Panel
Field Operation
